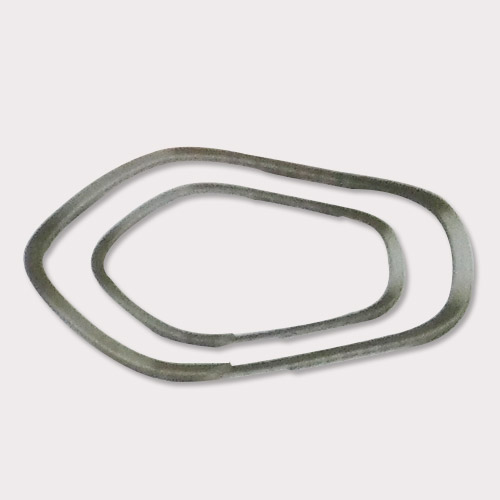

波形彈簧墊圈（GB 7246-87）
| 規(guī)格 (螺紋大徑) | d | H | S | b | ||||||
| min | max | min | max | 公稱 | min | max | 公稱 | min | max | |
| 3 | 3.1 | 3.4 | 1.1 | 1.3 | 0.6 | 0.52 | 0.68 | 1 | 0.9 | 1.1 |
| 4 | 4.1 | 4.4 | 1.2 | 1.4 | 0.8 | 0.7 | 0.9 | 1.2 | 1.1 | 1.3 |
| 5 | 5.1 | 5.4 | 1.5 | 1.7 | 1.1 | 1 | 1.2 | 1.5 | 1.4 | 1.6 |
| 6 | 6.1 | 6.68 | 2 | 2.2 | 1.3 | 1.2 | 1.4 | 2 | 1.9 | 2.1 |
| 8 | 8.1 | 8.68 | 2.45 | 2.75 | 1.6 | 1.5 | 1.7 | 2.5 | 2.35 | 2.65 |
| 10 | 10.2 | 10.9 | 2.85 | 3.15 | 2 | 1.9 | 2.1 | 3 | 2.85 | 3.15 |
| 12 | 12.2 | 12.9 | 3.35 | 3.65 | 2.5 | 2.35 | 2.65 | 3.5 | 3.3 | 3.7 |
| -14 | 14.2 | 14.9 | 3.9 | 4.3 | 3 | 2.85 | 3.15 | 4 | 3.8 | 4.2 |
| 16 | 16.2 | 16.9 | 4.5 | 5.1 | 3.2 | 3 | 3.4 | 4.5 | 4.3 | 4.7 |
| -18 | 18.2 | 19.04 | 4.5 | 5.1 | 3.6 | 3.4 | 3.8 | 5 | 4.8 | 5.2 |
| 20 | 20.2 | 21.04 | 5.1 | 5.9 | 4 | 3.8 | 4.2 | 5.5 | 5.3 | 5.7 |
| -22 | 22.5 | 23.34 | 5.1 | 5.9 | 4.5 | 4.3 | 4.7 | 6 | 5.8 | 6.2 |
| 24 | 24.5 | 25.5 | 6.5 | 7.5 | 5 | 4.8 | 5.2 | 7 | 6.7 | 7.3 |
| -27 | 27.5 | 28.5 | 6.5 | 7.5 | 5.5 | 5.3 | 5.7 | 8 | 7.7 | 8.3 |
| 30 | 30.5 | 31.5 | 9.5 | 10.5 | 6 | 5.8 | 6.2 | 9 | 8.7 | 9.3 |
